Longines 13ZN chronograph

Restoration of this Longines, having special 13ZN movement with central minutes recorder, was particularly difficult.It had various problems.The main problem was the cronograph hand axle collapsed.Which was reconstructed by means of a lathe.Other problems : rust on blue steel hands,original winding crown missing. Movement was serviced, hands were cleaned and added with luminous paste shade matching dial indexes. Winding crown was rebuilt by milling machine matching original shape.

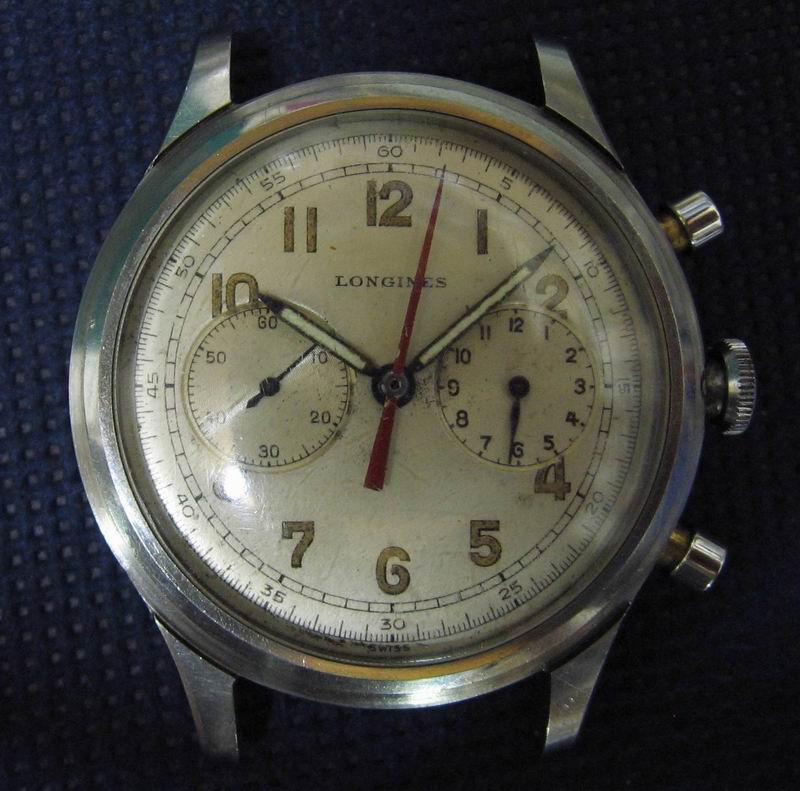

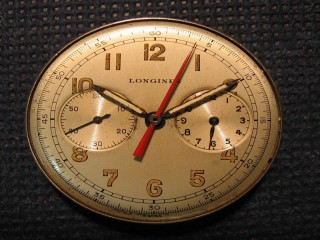

1. before restoration

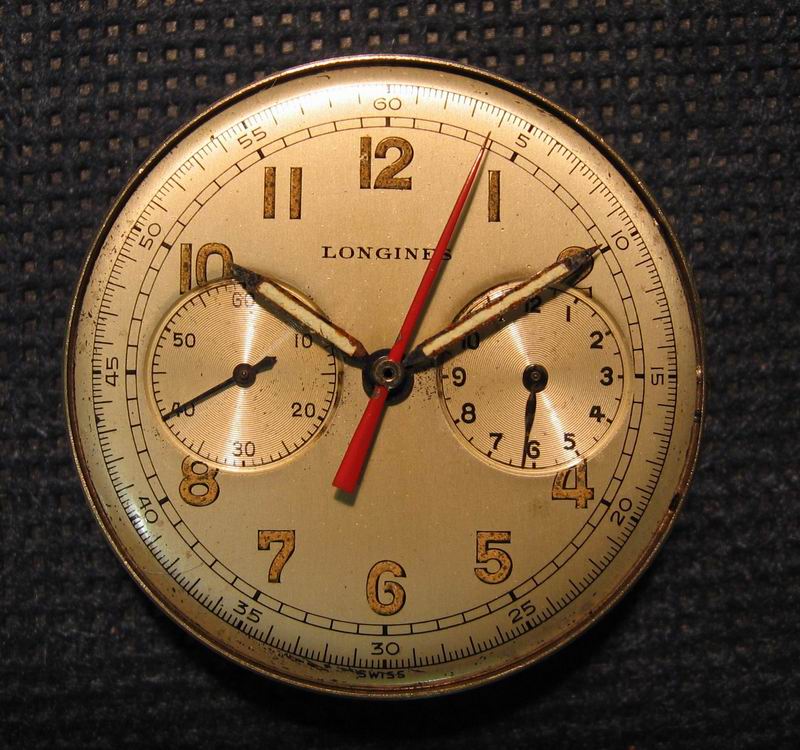

2. dial

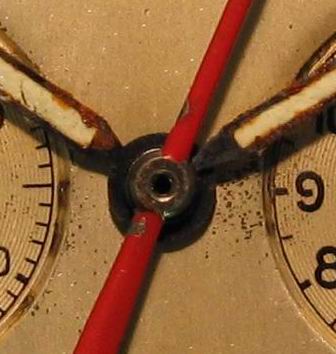

3. rust on hands surface

4. movement before disassembly

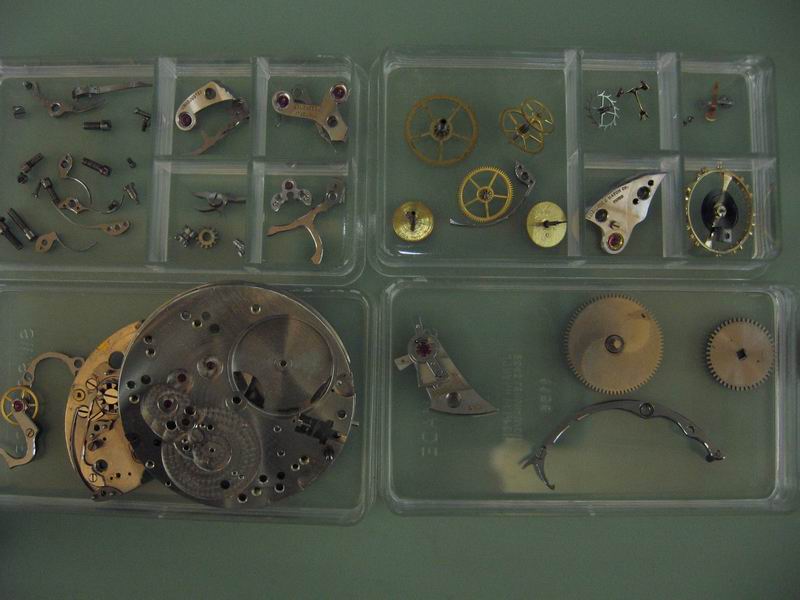

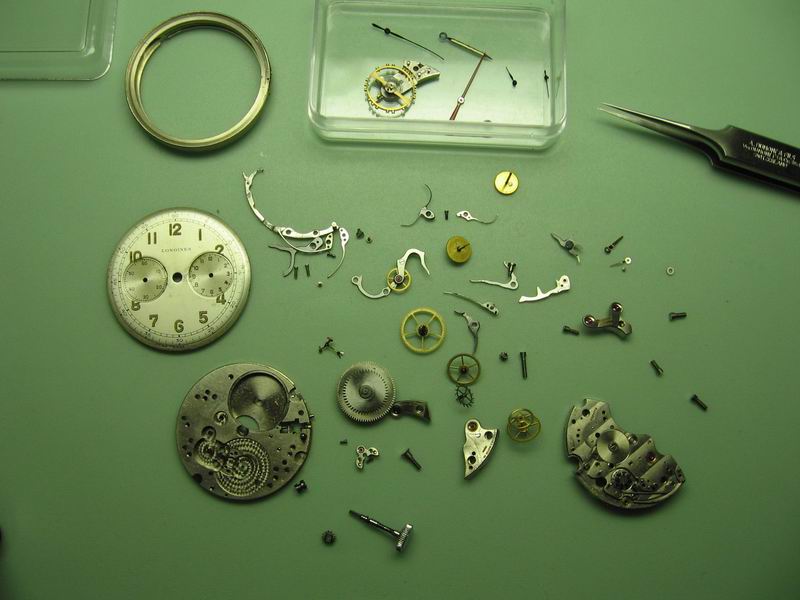

5. disassembled and cleaned movement

6. another detail of disassembled parts

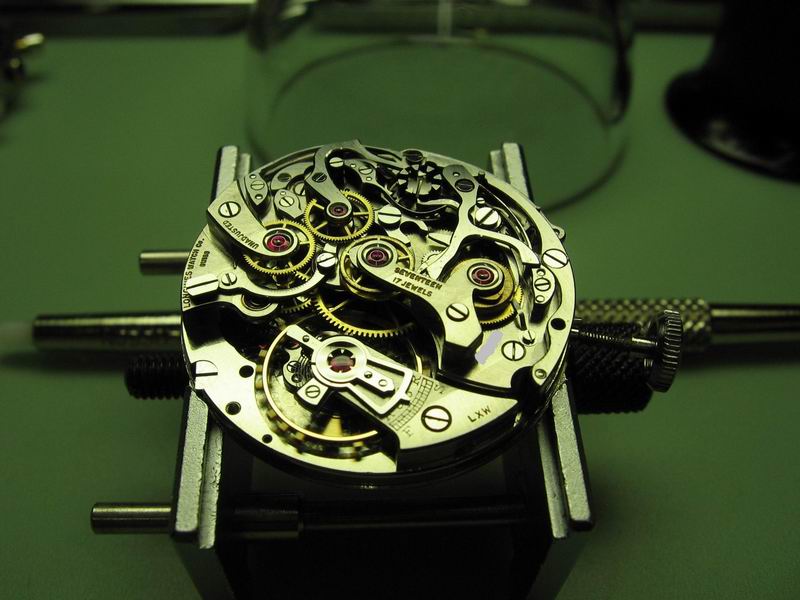

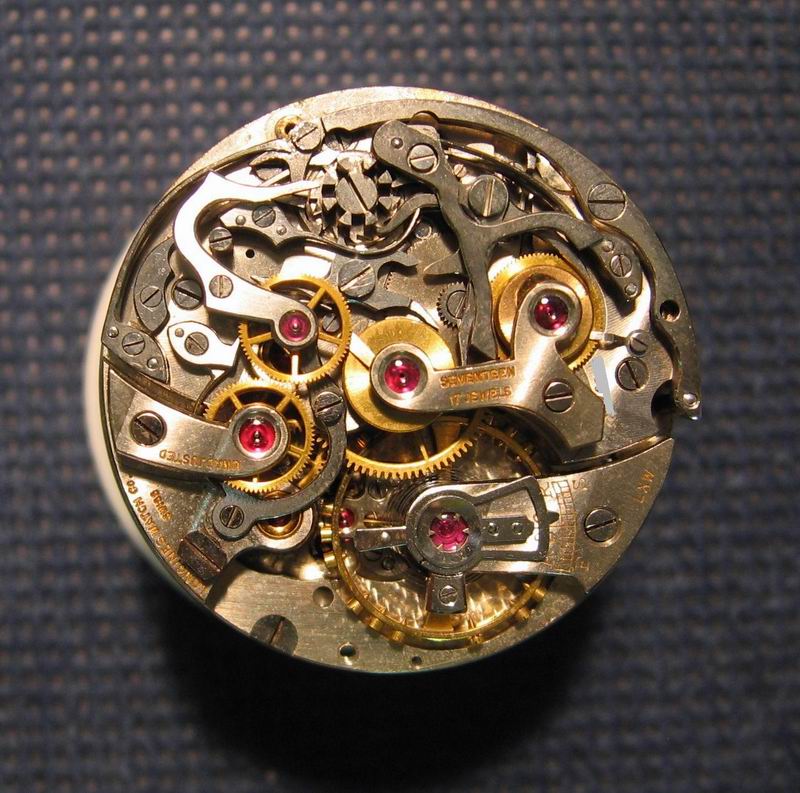

7. reassembled and lubricated movement

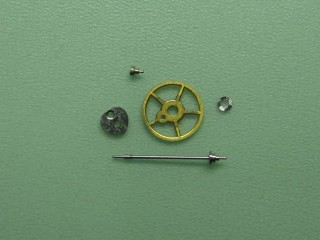

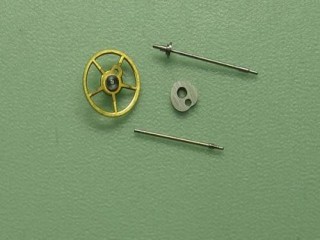

8. detail of broken wheel axle

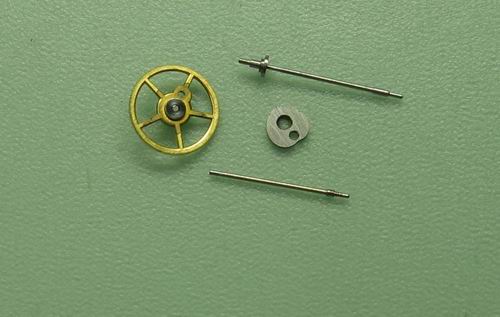

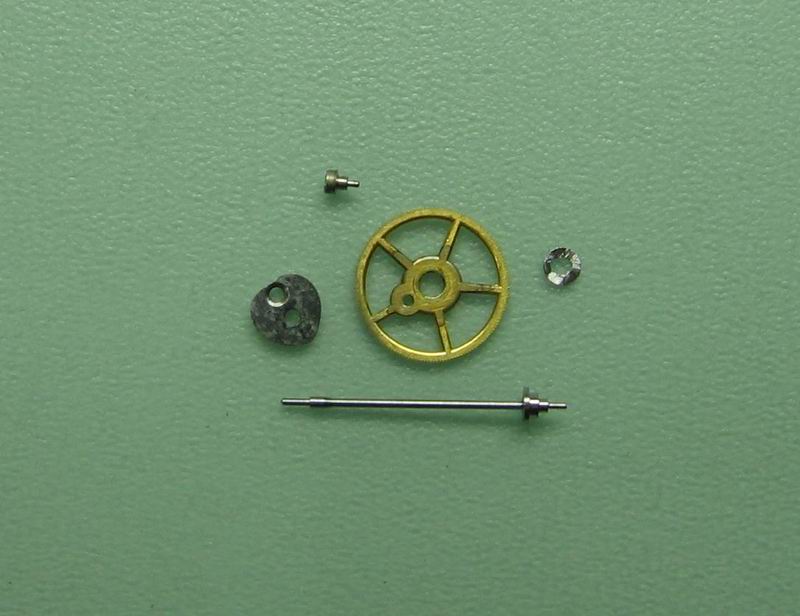

9. detail of back pivot removal and new axle

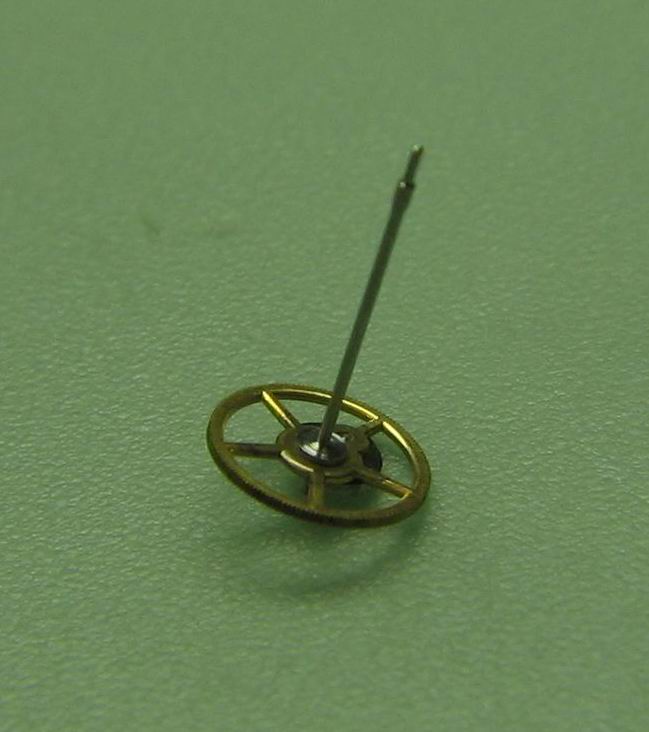

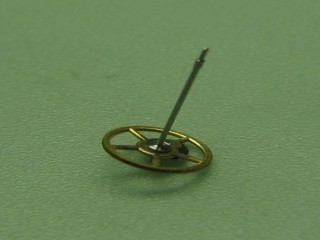

10. detail of wheel with new axle

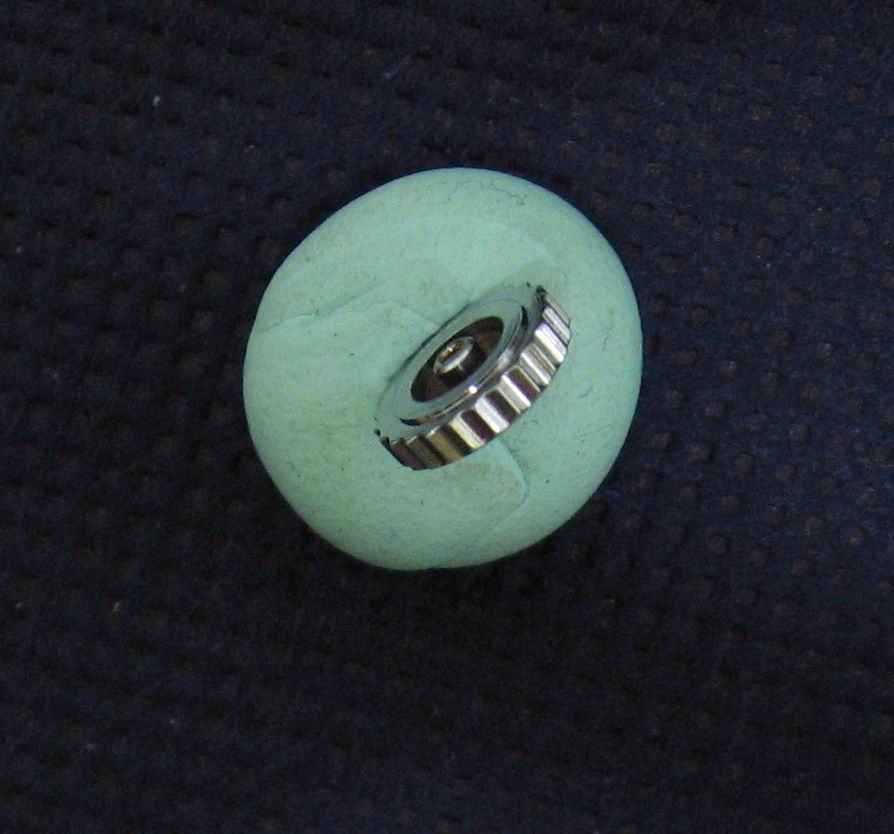

11. detail of new winding crown as milling product

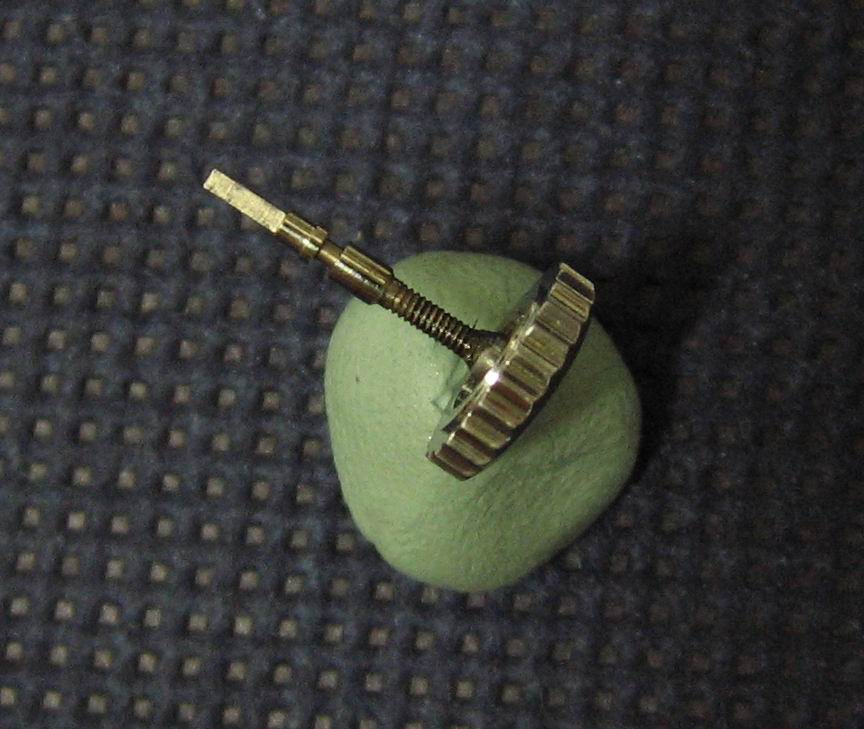

12. detail of new crown with stem

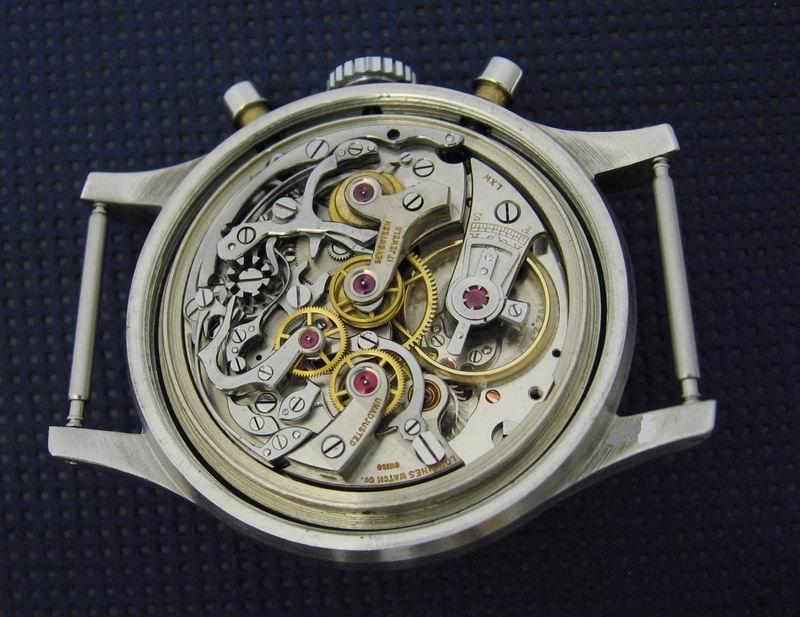

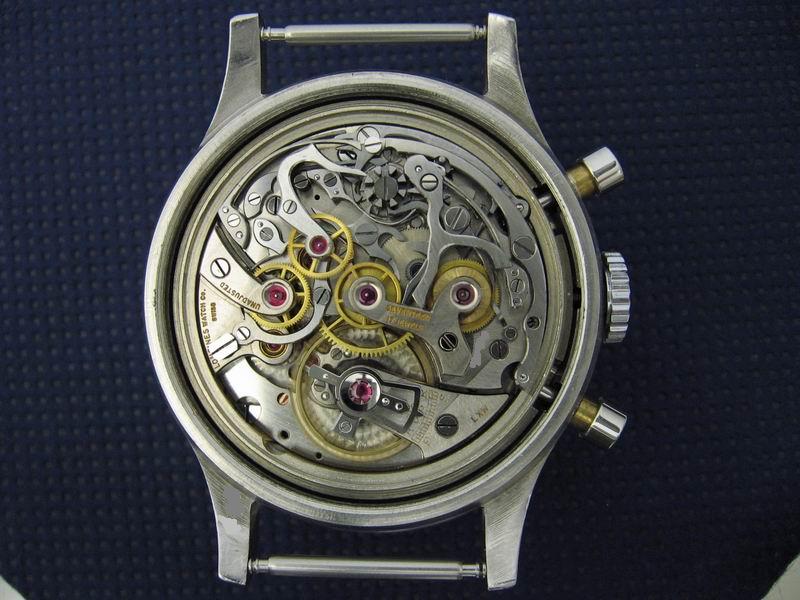

13. movement into case

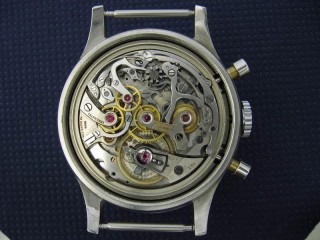

14. another picture

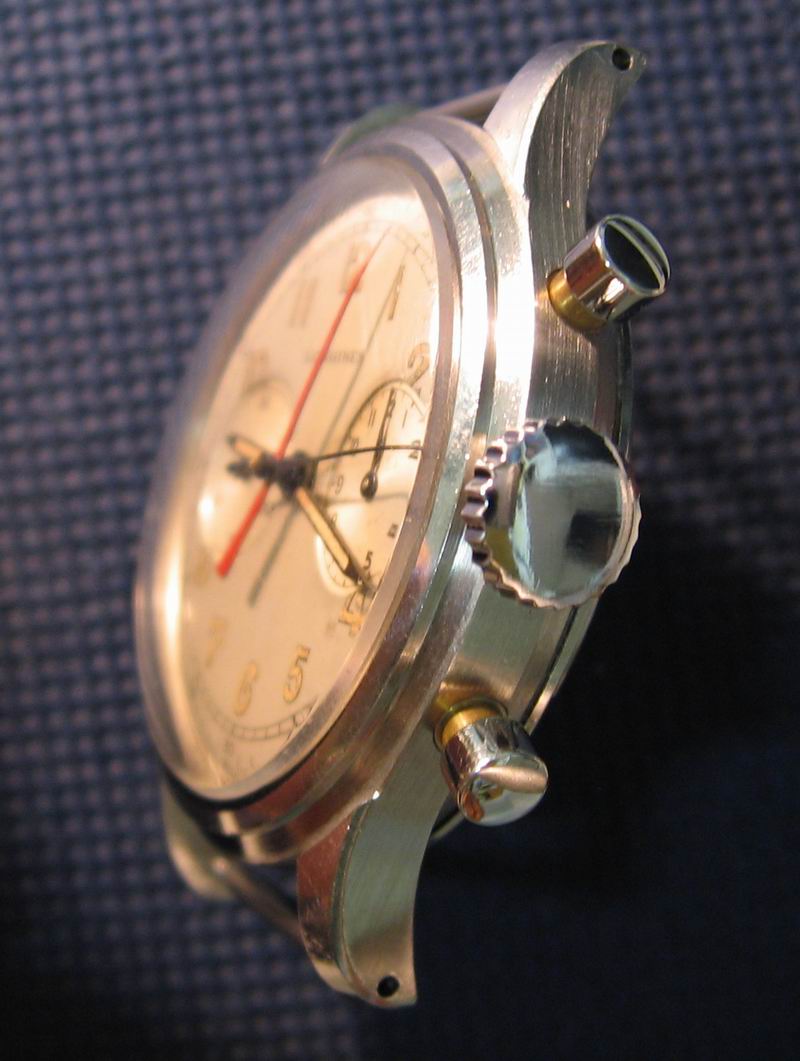

15. pusher side picture

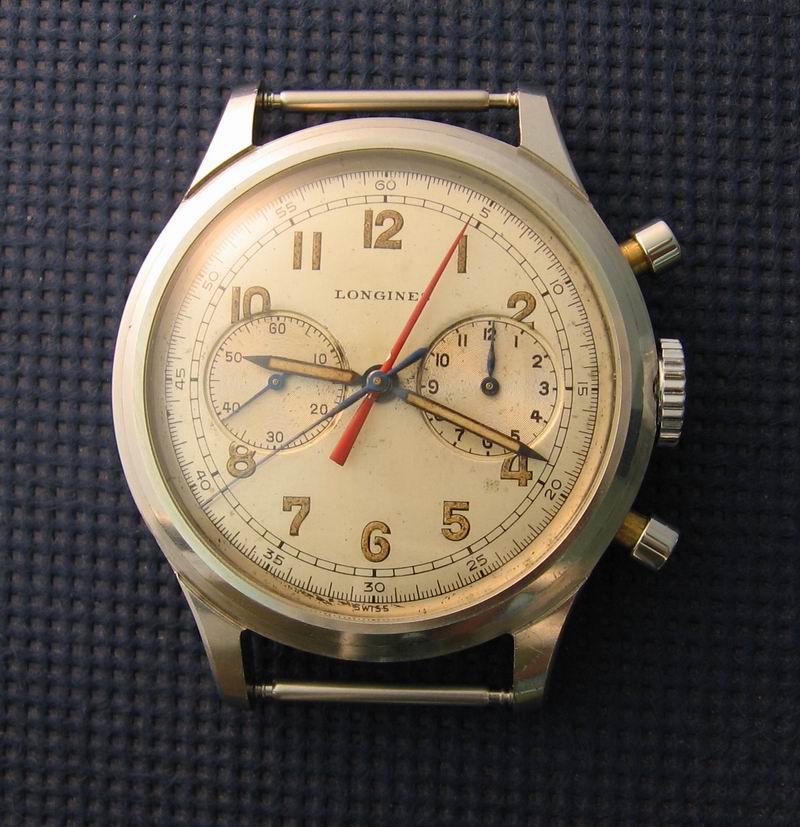

16. ended work

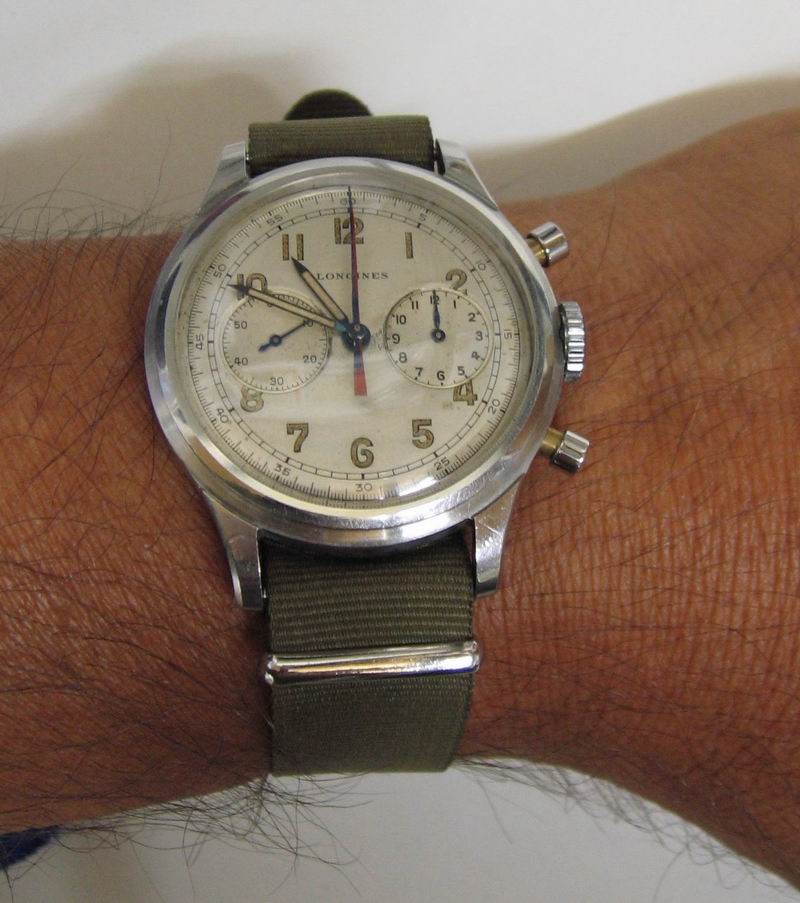

17. on the wrist
